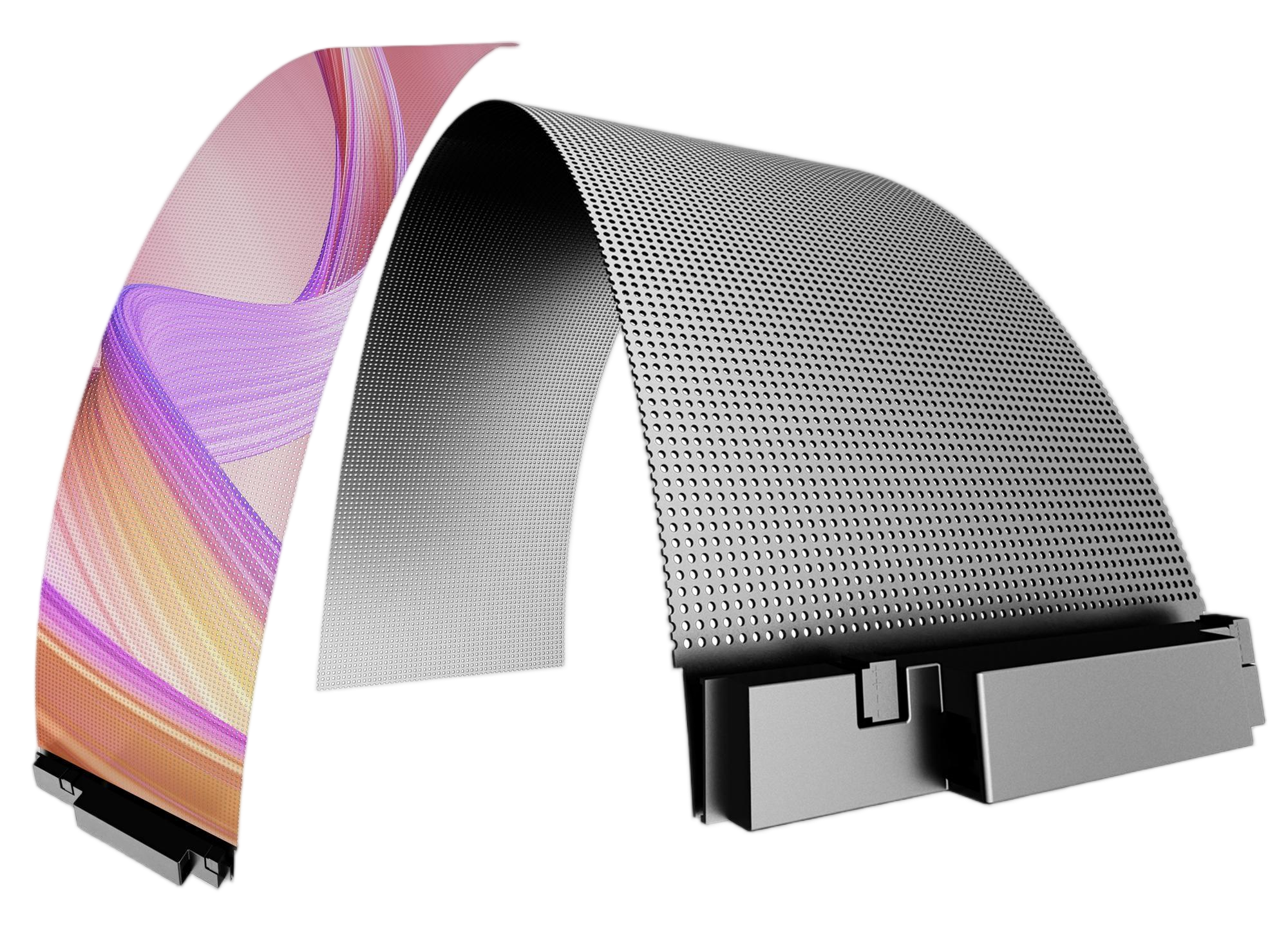

The adhesive holographic transparent screen adopts high-transmittance materials and an ultra-thin module design, fitting seamlessly onto glass or transparent surfaces. It delivers high-definition display while maintaining spatial transparency. Equipped with high-performance driver chips, it ensures vivid, delicate visuals with accurate color reproduction. The flexible installation method significantly reduces structural modification costs, making it ideal for shop windows, showrooms, museums, and other premium scenarios that require frameless and invisible displays.
✨ High transparency for clear visuals and open space
📏 Ultra-thin modules for lightweight adhesion
🔄 Flexible installation adaptable to multiple surfaces
⚡ Efficient driving for stable image quality
🛠️ Reduced structural needs for easy installation

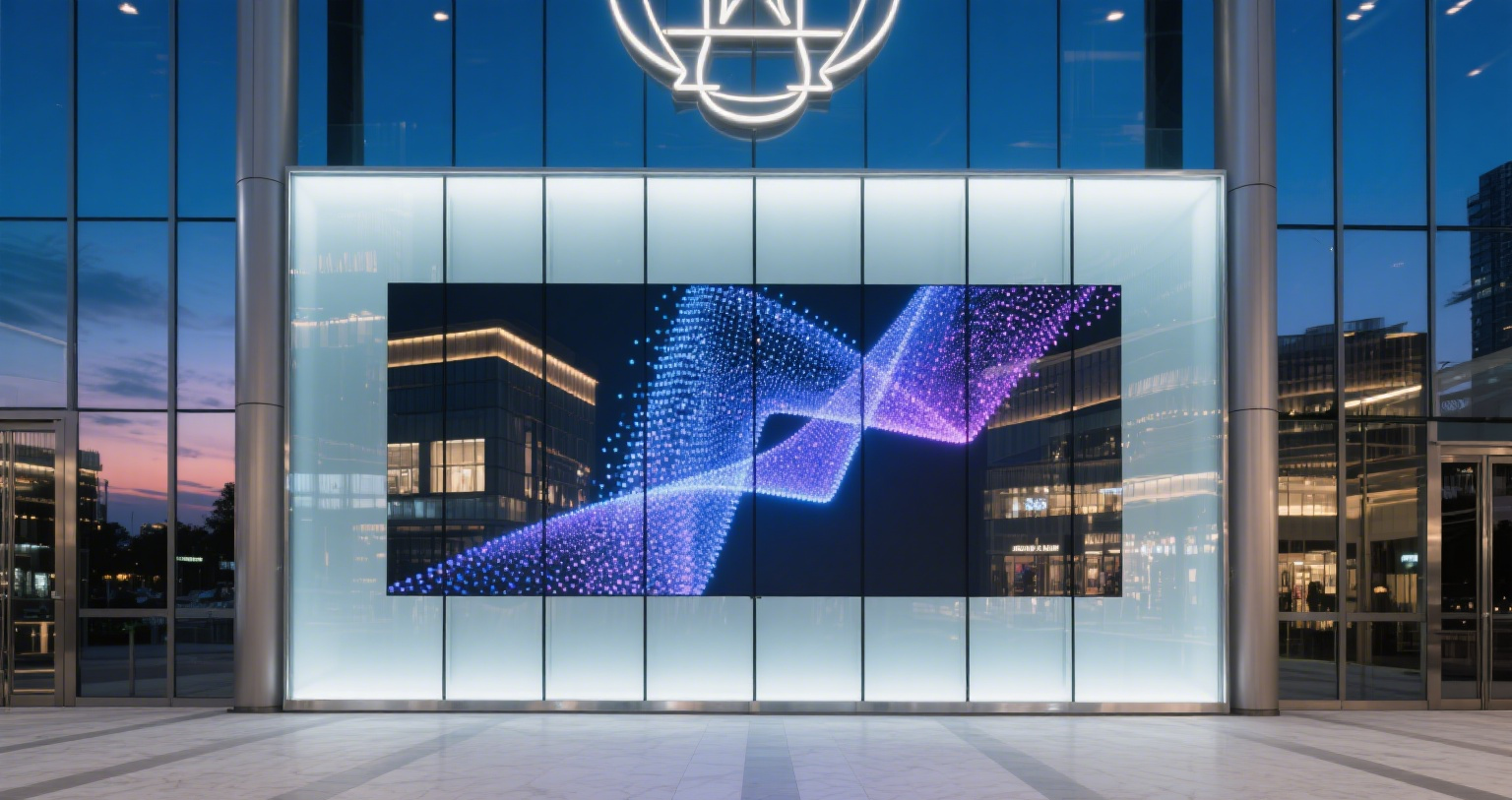

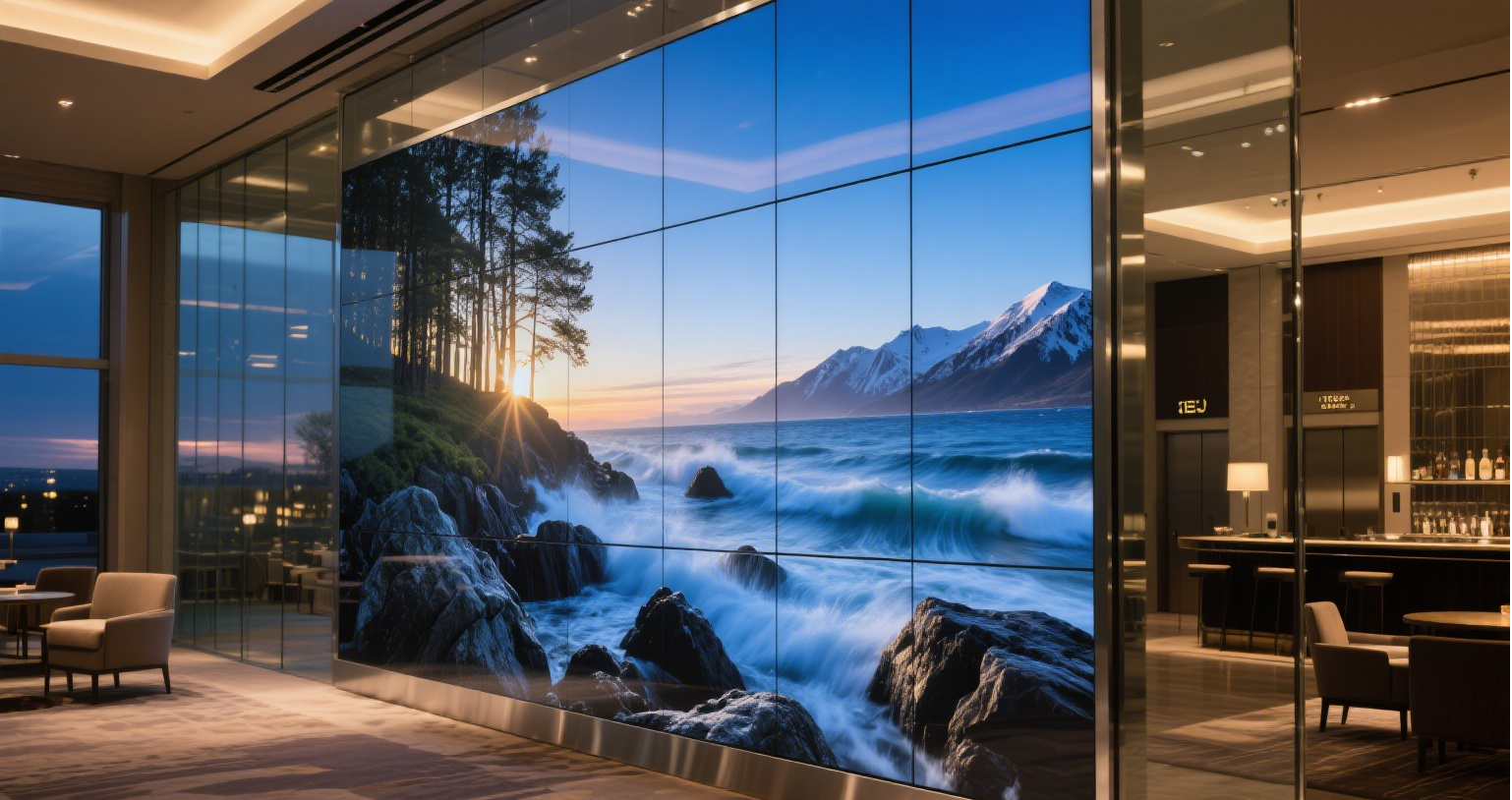

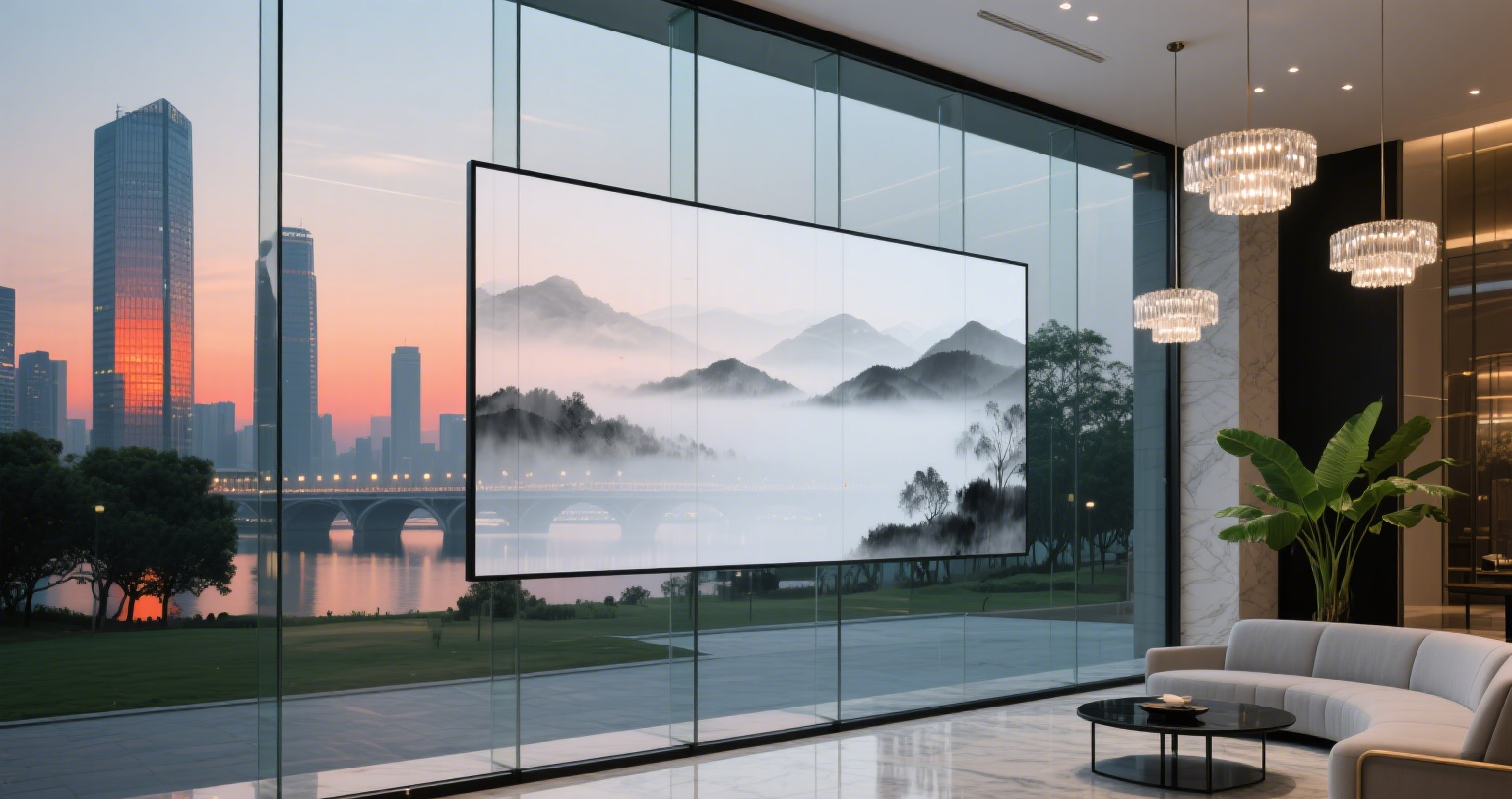

Suitable for commercial shop windows, showroom displays, museum exhibits, technology exhibitions, and glass curtain walls. It balances spatial aesthetics with high-definition display performance.
Item | T3.91 | T6.25 | ||
Pixel Pitch | 3.91 mm | 6.25 mm | ||
LED Type | SMD 1415 | SMD 1921 | ||
Module Dimension | Tx-100 | W250 × H1000 × D34 mm | / | |
Tx-120 | W250 × H1200 × D34 mm | / | ||
Tx-150 | W250 × H1500 × D34 mm | |||
Module Resolution | Tx-100 | W64 × H256 pixels | / | |
Tx-120 | W64 × H308 pixels | / | ||
Tx-150 | W64 × H384 pixels | W40 × H240 pixels | ||
Physical Transparency | 35% | 43% | ||
Cabinet Weight | 2.5kg | |||
Brightness | ≤3000 nit/m² | |||
Refresh Rate | 3840~7680Hz | |||
Color Temperature | 3000~10000 K | |||
Ingress Protection | IP50 | |||
Max. Power Consumption | 570 W/m² | |||
Avg. Power Consumption | 228 W/m² | |||
Input Voltage | AC 90~240 V | |||
Operating Temp. & Humidity | -20~50℃，0~80% | |||
Cabinet Material | Aluminum | |||
Mounting Type | Front Surface Mount | |||
Control System | Novastar,Colorlight,Syslution,Mooncell | |||
Warranty | 18 Months | |||
