H03G

第9页-9 拷贝.jpg

Product Overview：

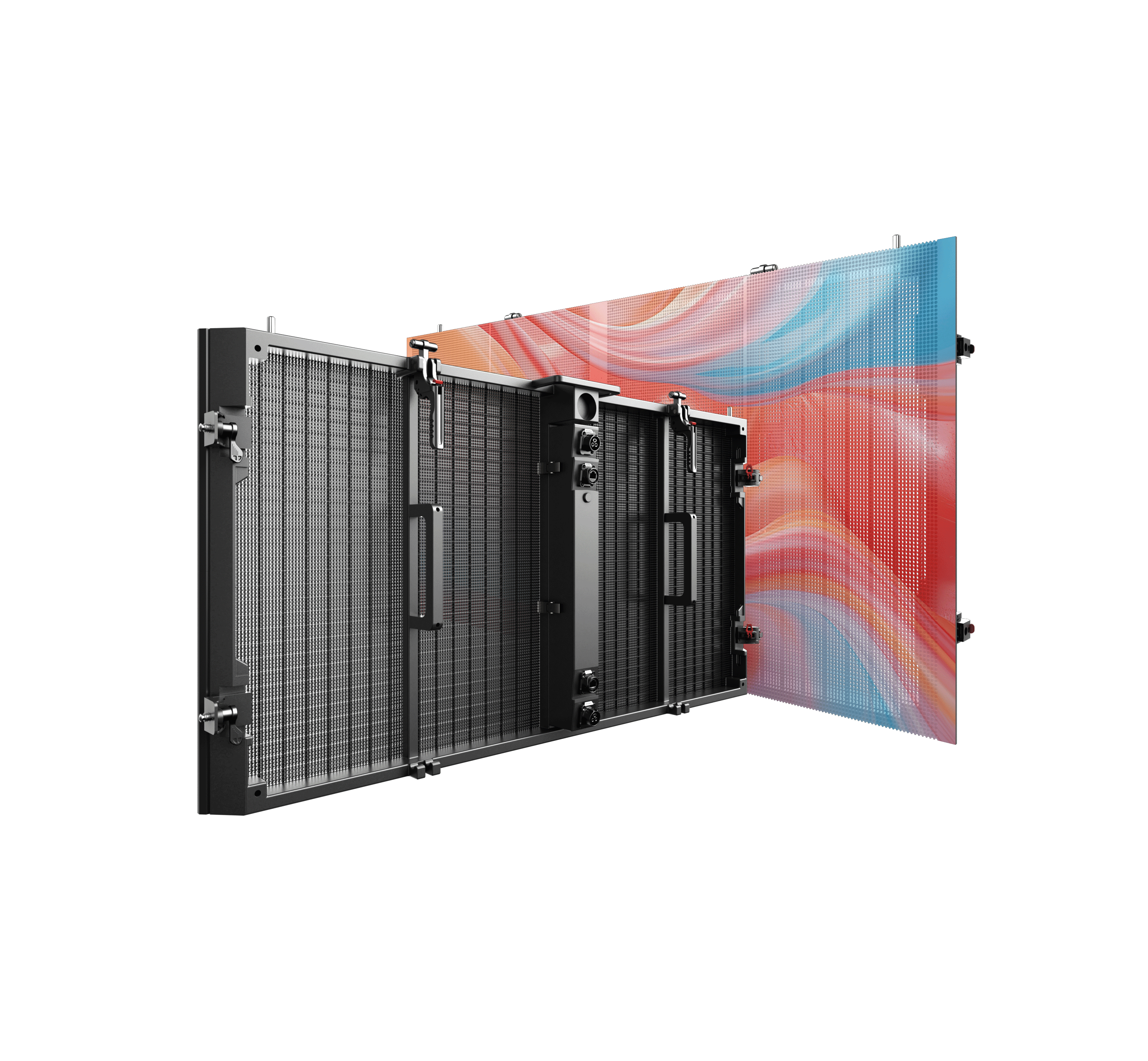

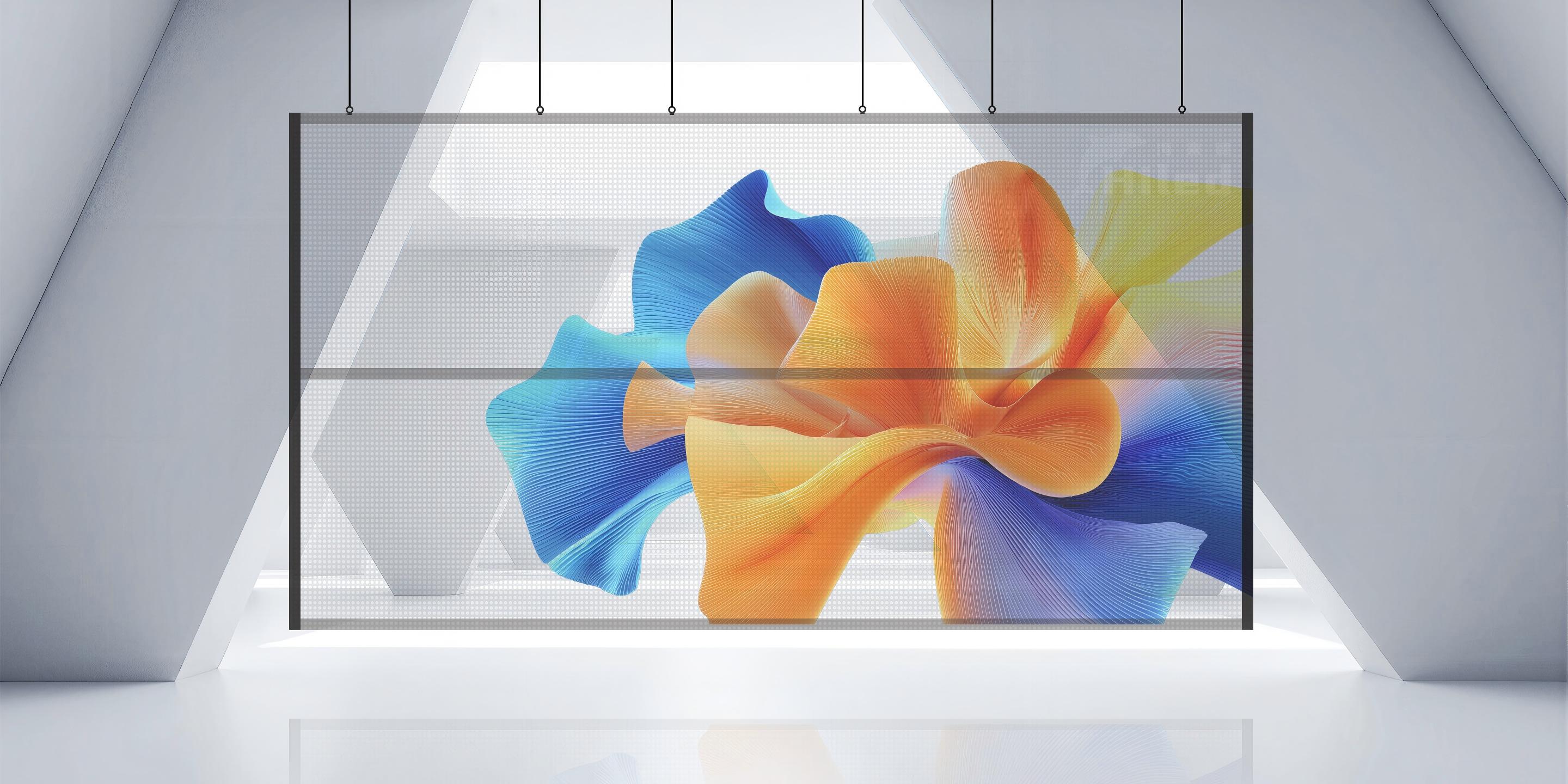

The suspended holographic transparent screen adopts a minimalist cabinet design with separated lamp and driver technology. The external driver ICs are evenly distributed, ensuring excellent heat dissipation to effectively reduce operating temperature and prevent brightness attenuation or color deviation. Its lightweight structure minimizes suspension load, enabling efficient installation and simple maintenance. The high-transmittance material delivers clear and vivid visuals, making it ideal for premium hanging display scenarios such as stages, showrooms, and shop windows.

Key Advantages：

✨ High transparency & vivid colors;
❄️ Lamp-driver separation for stable, low-temperature operation;

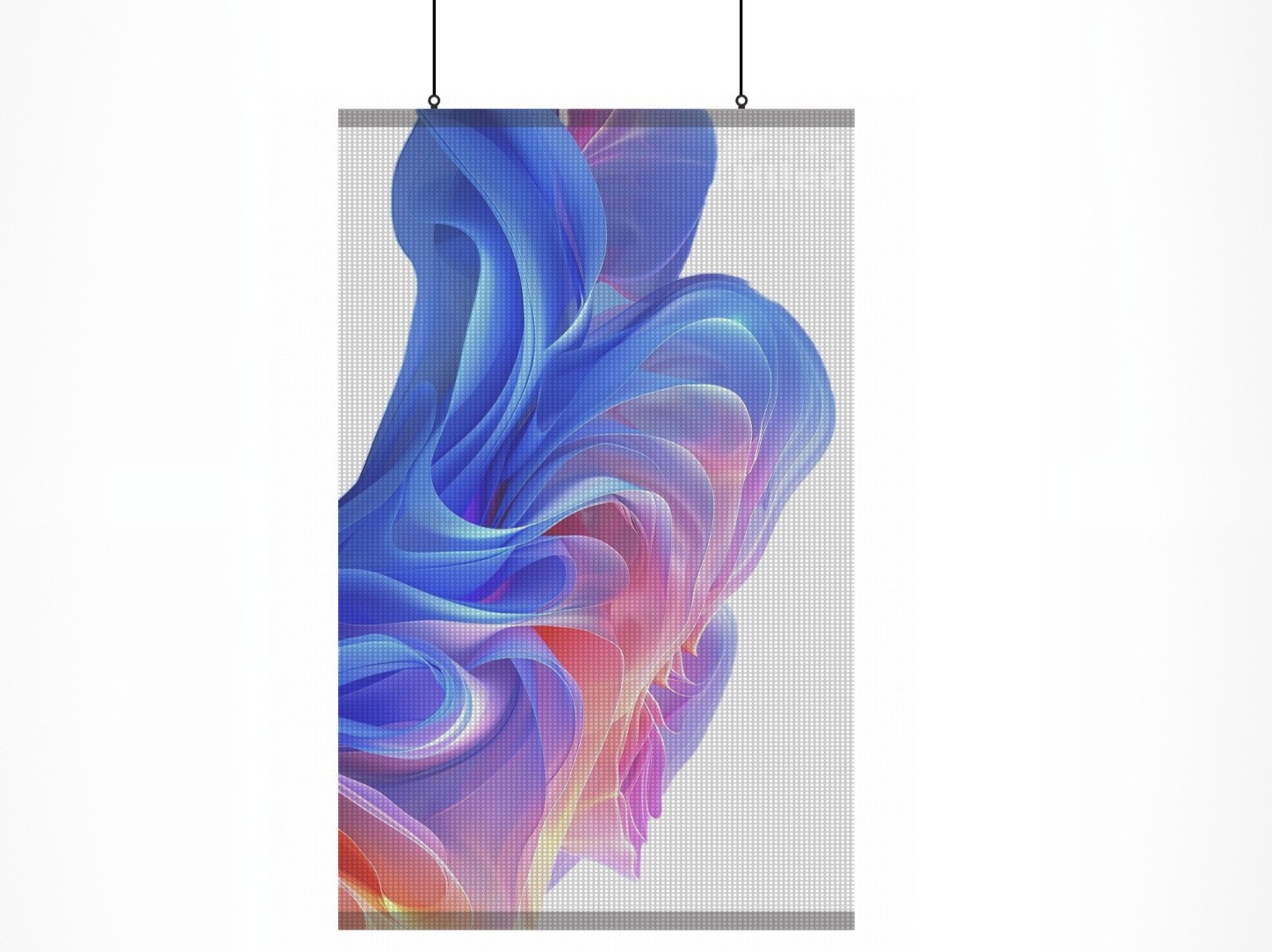

⚖️ Lightweight structure for easy suspension;
🧩 Modular design for seamless splicing;
⚡ High refresh rate for smooth and delicate visuals.

Application Scenarios：

Widely used in stage performances, showroom displays, commercial shop windows, technology exhibitions, and art installations, providing both strong visual impact and ease of installation and maintenance.

🔴 1. Self-Developed IC, Transparent Display

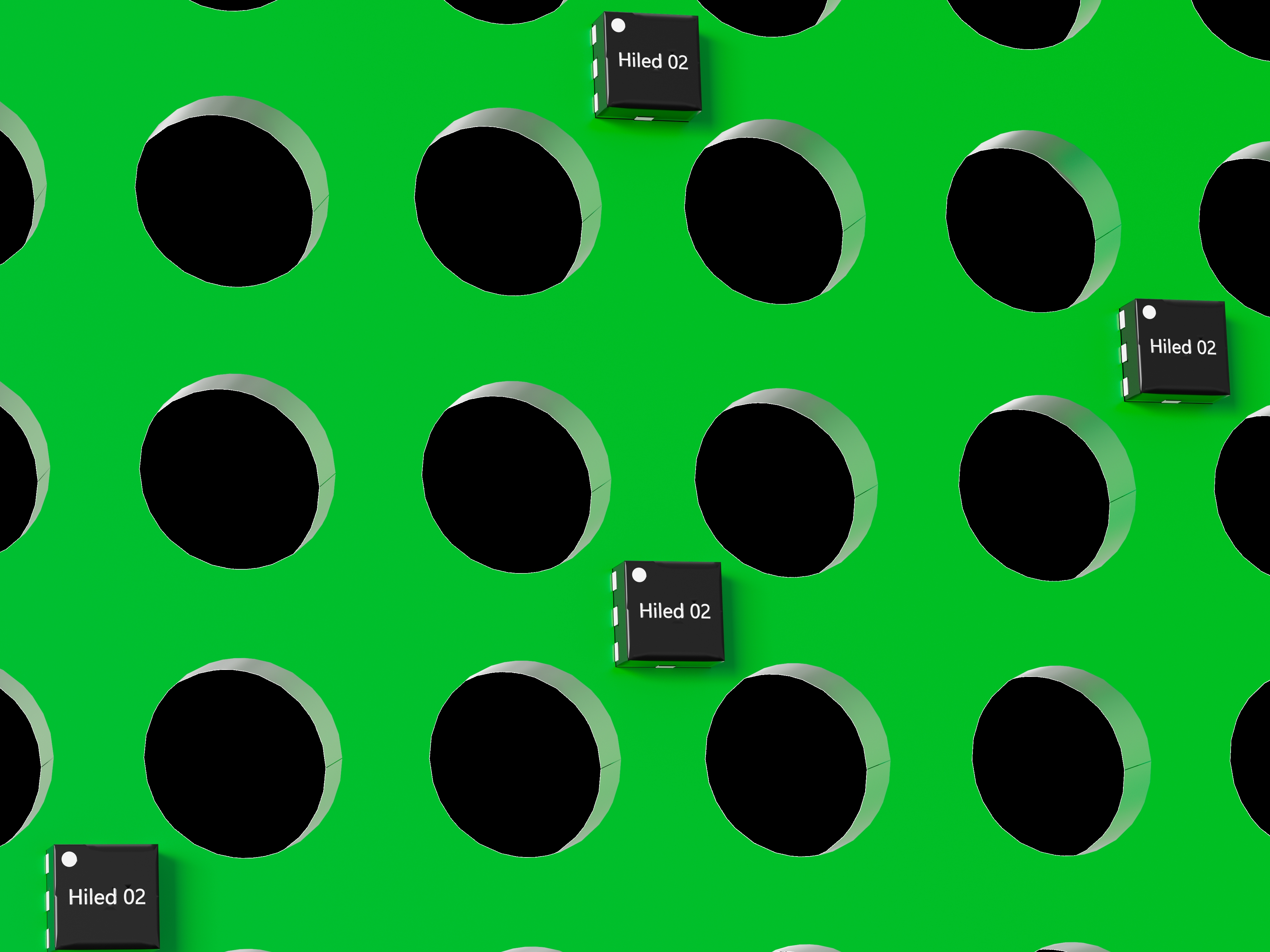

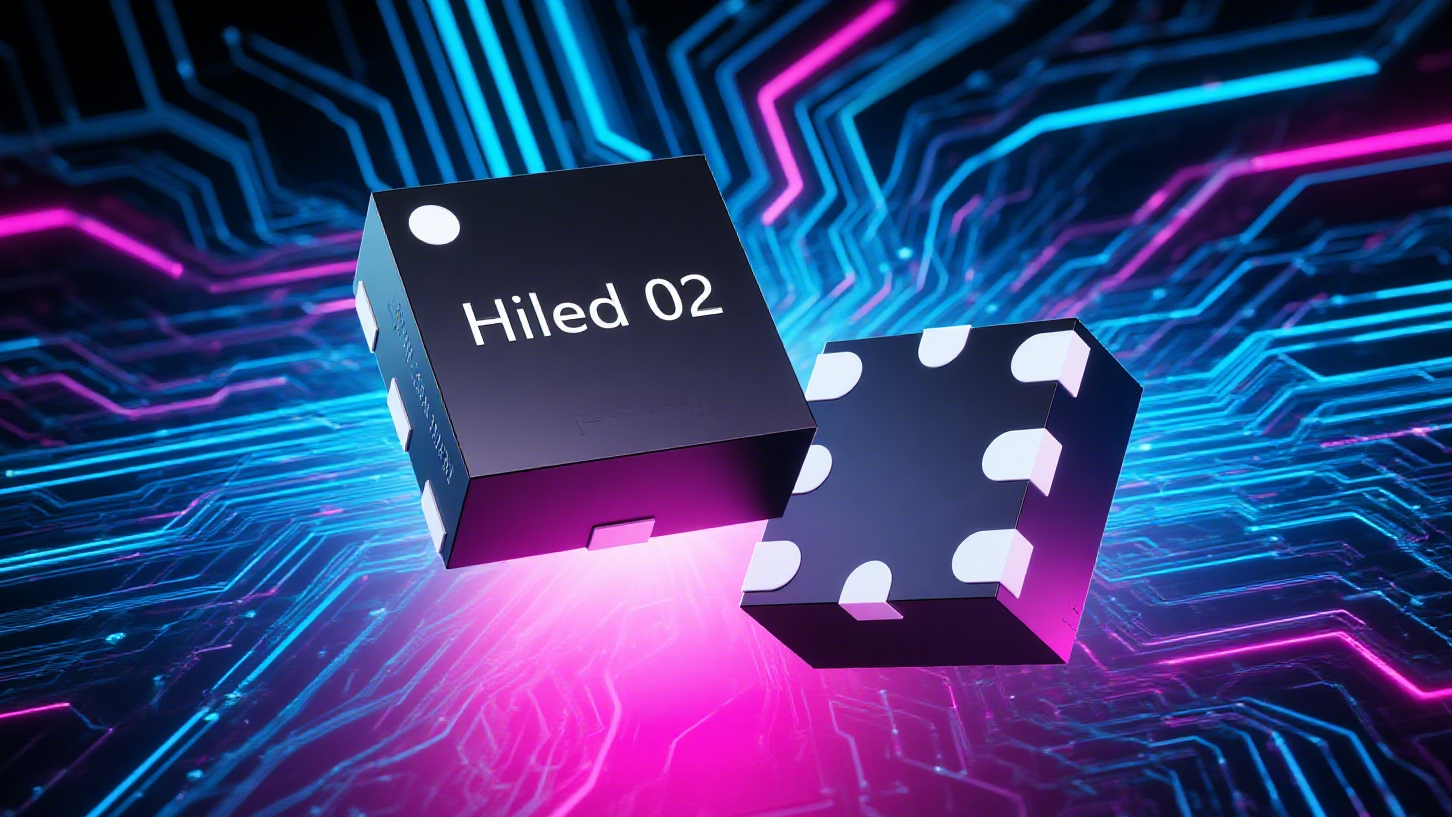

Hiled' s driver IC, specially designed for transparent displays,measures just 1.4 x 1.4 x 0.5 mm, and is fully hidden behind the PCB board, enabling ultra-high transparency with no visible black spots, while supporting high refresh rates and high brightness.
🔴 2. Led Driver-IC Separation, Holo Transparent Cool Display

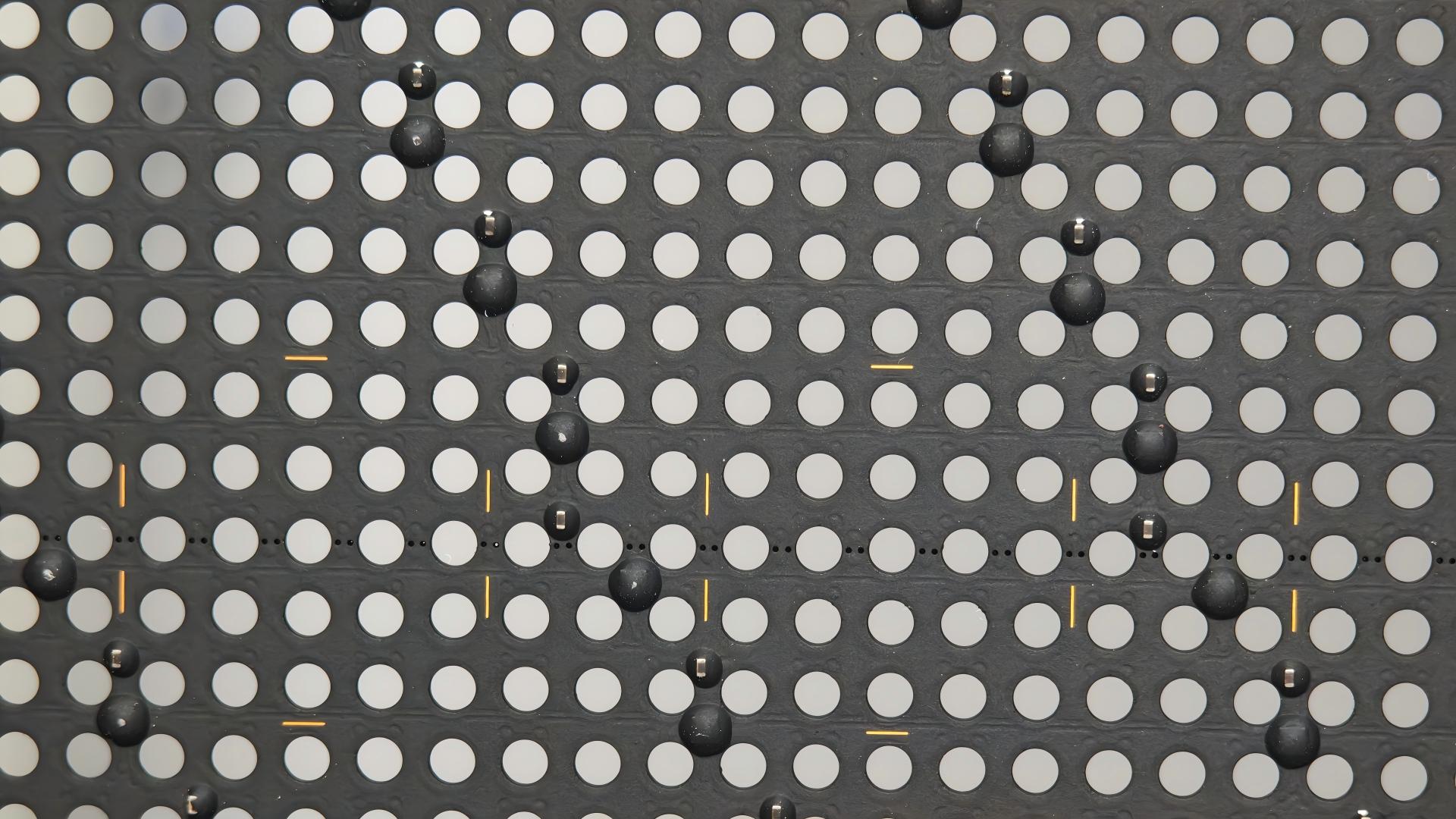

Adopts an optimized LED Driver-ICSeparation design, with externally mounted and evenly distributed chips to deliver excellent heat dissipation. This fundamentally ensures color accuracy without color shift and provides more stable operation. Even during long-term continuous use, the screen temperature remains within a comfortable, touch-safe range.
🔴 3. Unlimited Width and Height, Seamless Curved Expansion

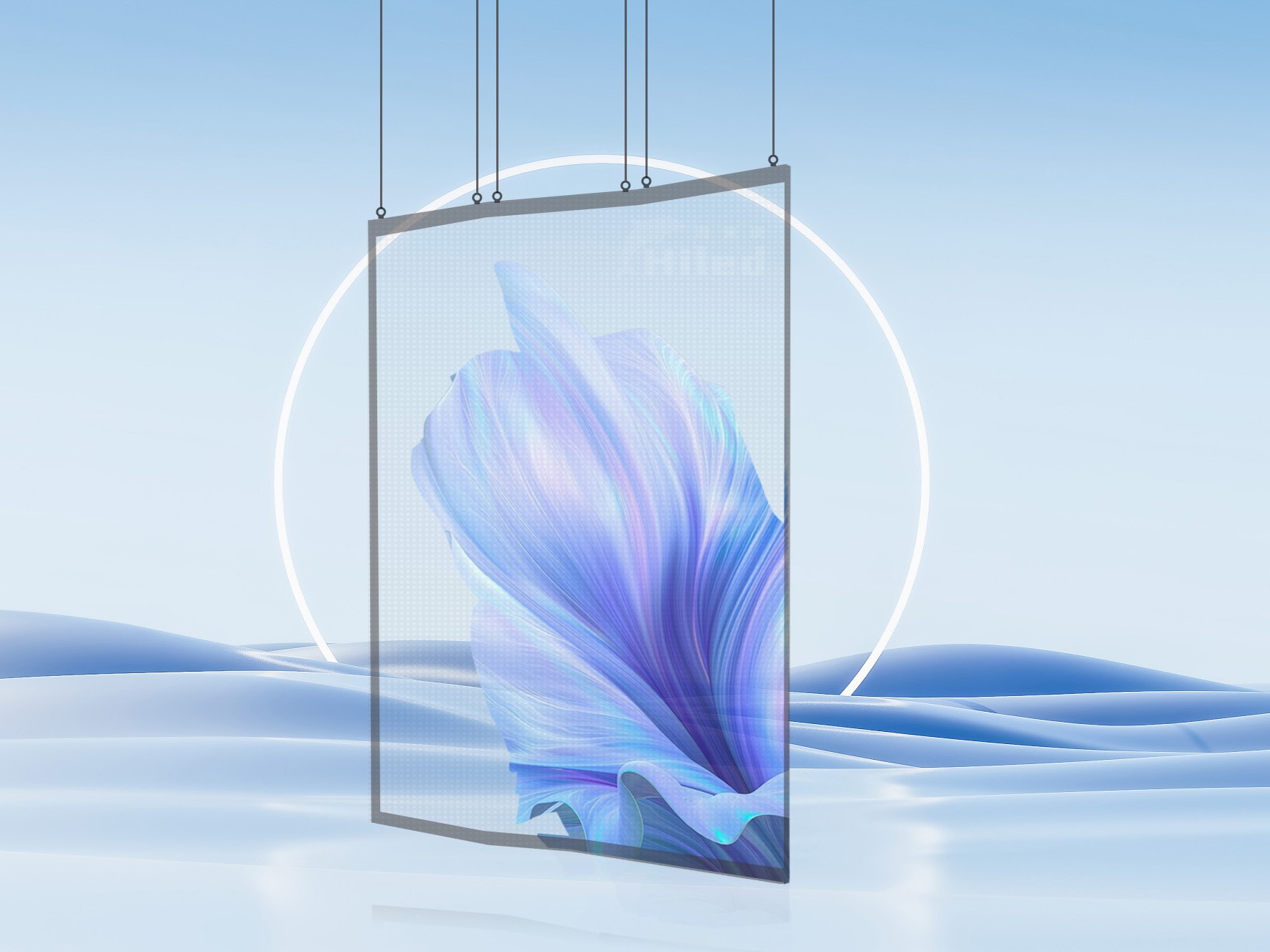

The modules support unlimited horizontal and vertical expansion with high-precision splicing. Seamless connections between cabinets ensure a flat, uniform, and visually consistent large-scale display. In addition, the screen supports ±15°curved expansion,further enhancing flexibility and scalability for diverse display applications.

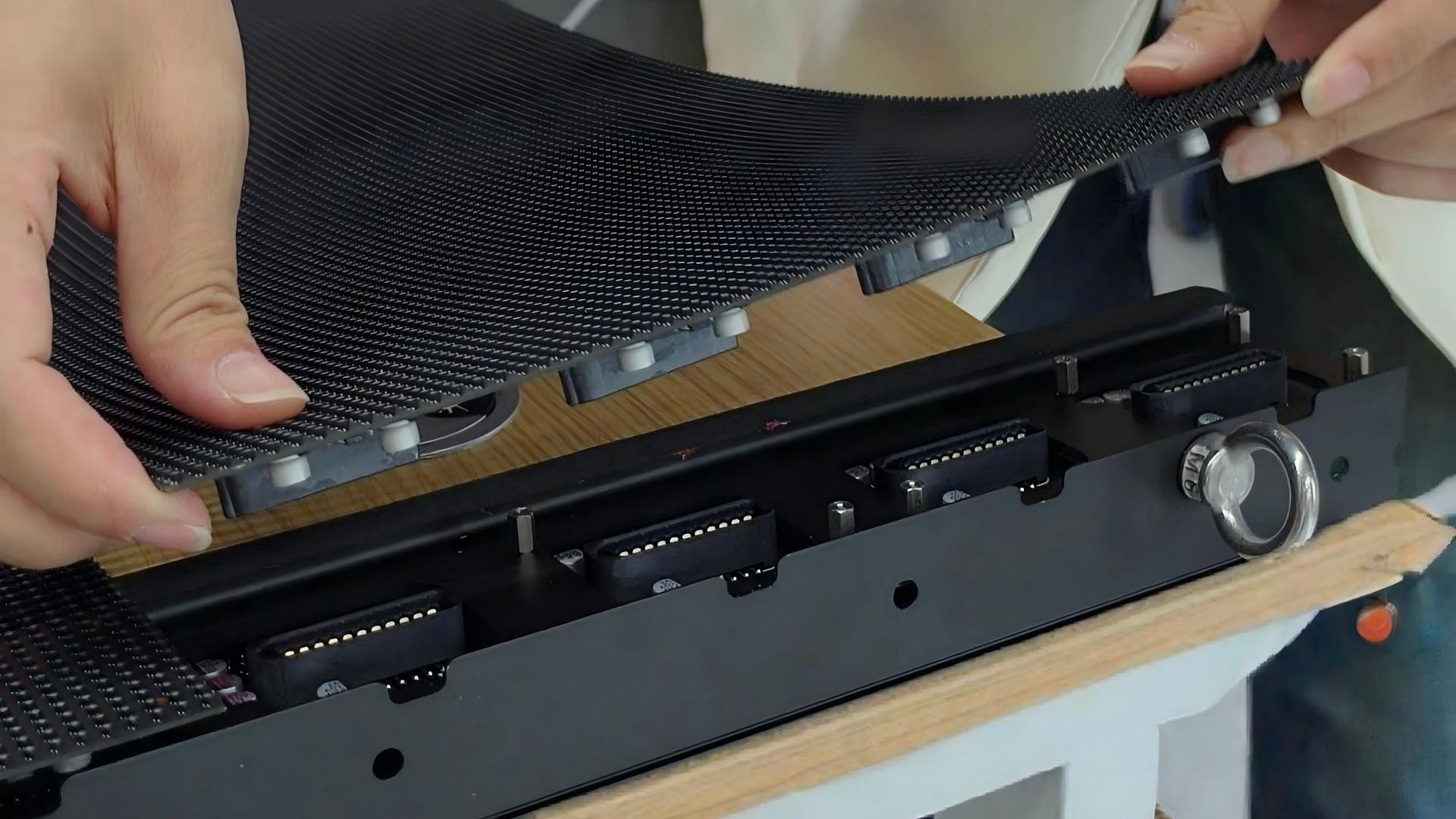

🔴 4. Hard Connection, Easy Repair

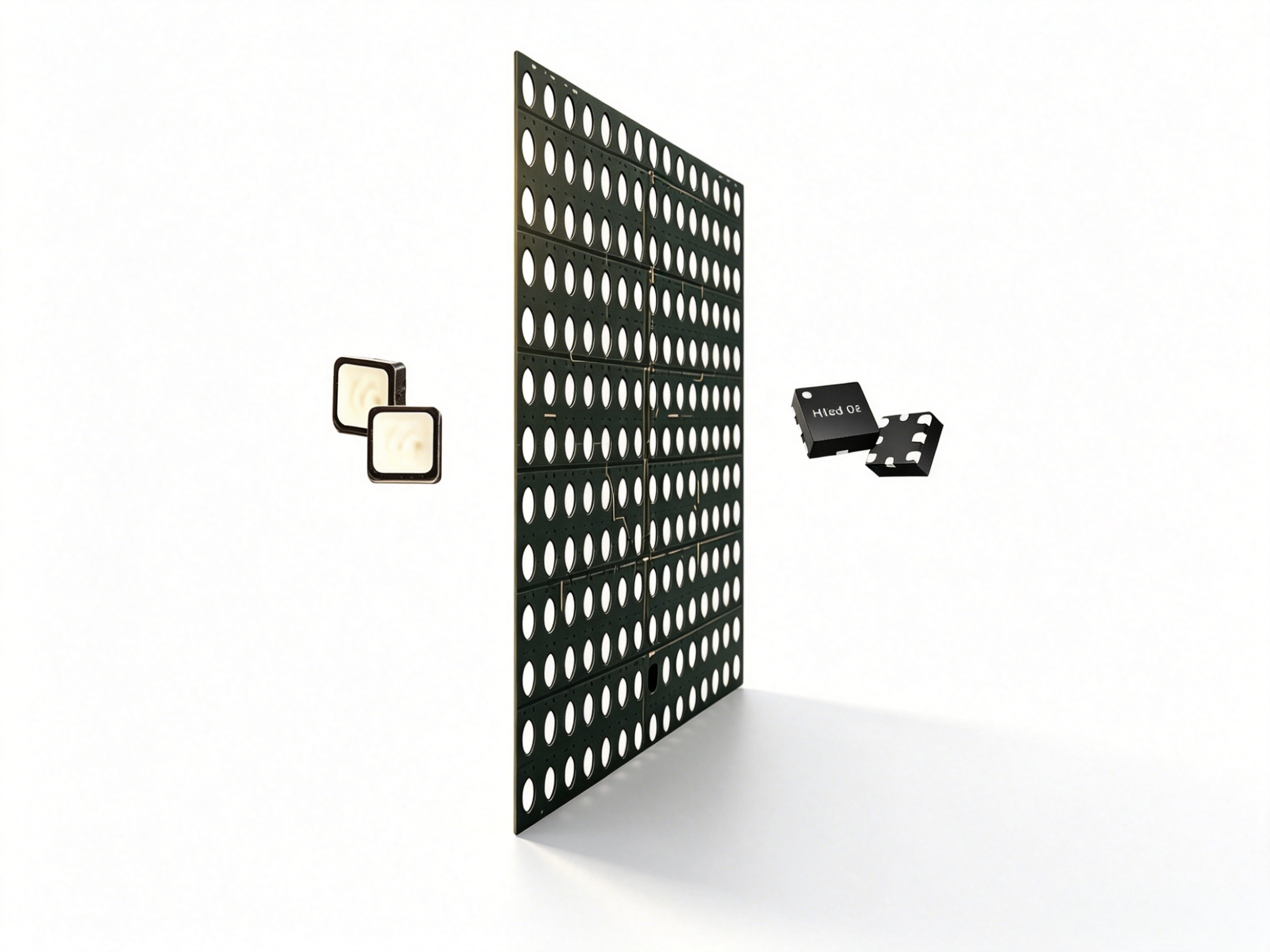

This product adopts a hard connection design, ensuring every component is securely fixed to enhance overall structural strength and reliability.Featuring LED Driver-IC Separation design,maintenance is extremely simple: when an IC is damaged, only the lC needs to be replaced; when an LED fails, only the LED requires replacement-no complex operations involved. This enables efficient and convenient after-sales service while significantly improving overall reliability and extending the product's service life.

Parameter

H03G

Product Model		H03G-P2.6	H03G-P3.91	H03G-P6.25
Pixel Pitch		2.6mm	3.91mm	6.25mm
LEDType		SMD1415	SMD1415	SMD1921
Cabinet Dimensions (Wx Hx D)	Hx-100	/	500x1000x55.3mm	/
	Hx-120	/	500x1200x55.3mm	/
	Hx-150	500x1500x55.3mm
Cabinet Resolution (W x H)	Hx-100		128 X256 pixels
	Hx-120		128 x308 pixels
	Hx-150	192 x 576pixels	128 x384 pixels	80 x240 pixels
Module Dimensions (WxH)	Hx-100		250x1000mm
	Hx-120		250x1200mm
	Hx-150	250x1500mm
Module Resolution (W x H)	Hx-100		64x256pixels
	Hx-120		64x308pixels
	Hx-150	96x576pixels	64x384pixels	40x240pixels
Physical Transparency		20%	35%	32%
Brightness		≥3500cd/ m²		≥3200cd/ m²
Refresh Rate		3840 ~7680HZ
Color Temperature		3000-10000K
Ingress Protection		IP40
Max.Power Consumption		350 W/ m²
Avg.Power Consumption		140 W/ m²
Input Voltage		AC90 ~240V
Operating Environment		-20 ~50℃，0 ~80℃
Cabinet Material		Aluminum
Installation Method		Hanging Installation, Surface Mount, Curved Splicing, Vertical Installation
Control Card System		Novastar
Warranty Period		12 Month
